***BUILD PLANS – PDF DOWNLOAD***
Looking for a better storage solution for all your offcuts?
Get organized and build this compact mobile lumber storage cut made from a single sheet of plywood.
It features 3 different depths of cubbies for various lengths of wood. The back cubbies are extra deep for long boards. Use the space at the bottom to store boards horizontally or add plastic bins to keep small scraps organized.

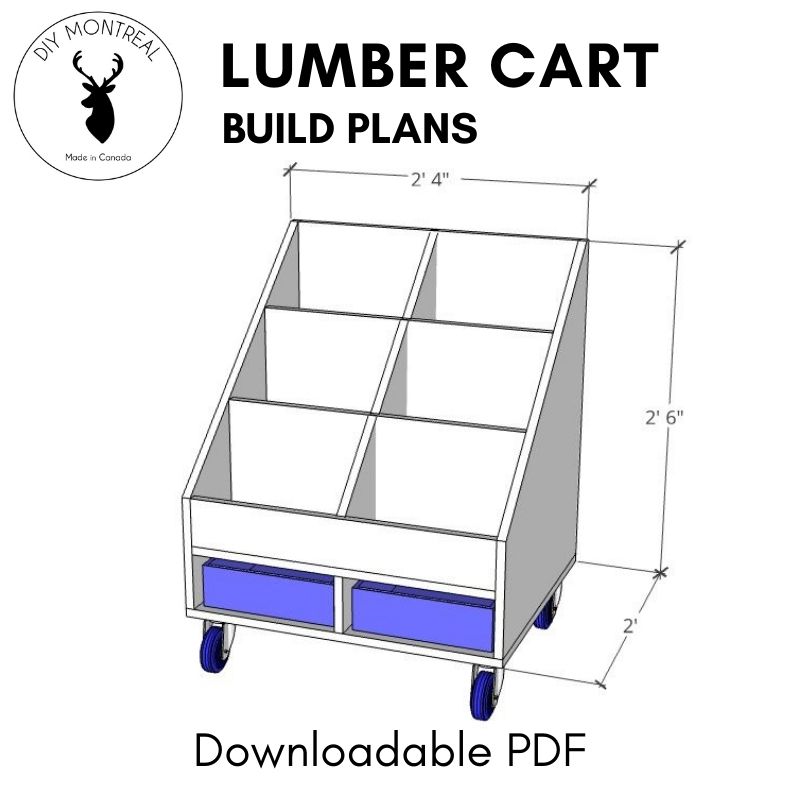

Dimensions: 28” wide x 24” deep x 30” tall (excluding casters).
Tools: simple assembly using regular wood screws. Recommended tools include a track saw or circular saw with homemade guide rail, as well as a router and straight bit. See all the recommended tools and materials in the written article here.
Materials: all you’ll need for this build is a single sheet of 3/4-inch plywood, 4 inch casters, plastic bins (optional), and screws.
These downloadable plans include 12 pages of information including: detailed cutting diagrams (including rough cuts that can be made at the store for easy transport), dimensions, 3D color-coded assembly diagrams, materials lists, step-by-step instructions, tips and other resources.
Bonus! Instructions on how to build an extra side compartment that can be made with the remaining plywood offcuts. Mounted with pocket screws for easy removal (or addition) when needs change in the future. Great add-on for storing sheet good offcuts!
The plans are designed to be used in combination with the YouTube video which provides step-by-step instructions.
*Measurements in the plans are imperial, not metric.
